MANIFOLD SYSTEM

What is the purpose of a manifold system in a Medical Gas Pipeline System (MGPS) connection?

A manifold system in an Medical Gas Pipeline System (MGPS) ensures continuous gas supply by regulating pressure and switching between primary and reserve cylinders.

How does the Manifold system in the Medical Gas Pipeline System help eliminate risks?

A manifold system in an Medical Gas Pipeline System (MGPS) eliminates risks by ensuring automatic switchover between gas sources, preventing supply interruptions and maintaining stable pressure.

Our Products

MANIFOLD SYSTEM

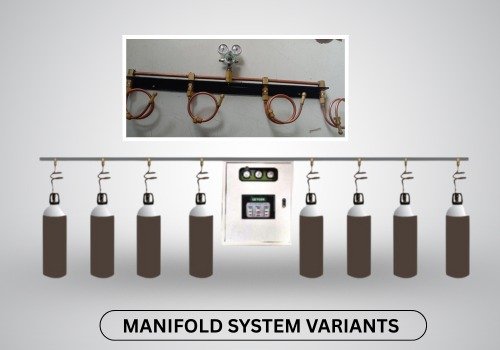

Our manifolds, available in both expandable and non-extendable types, are designed to accommodate D-type jumbo cylinder banks of varying sizes. Each manifold is equipped with high-pressure copper annealed tail pipes, featuring brass adaptors for seamless cylinder connections. To ensure safety and efficiency, the manifolds include brass non-return valves (NRVs) for individual cylinders, providing reliable gas control for your specific needs. (Note: Cylinders to be provided by the client.)

Specifications:

Our 2-cylinder module manifold header offers flexible capacity expansion with interconnectable headers and secure connections through High Pressure (HP) Non-Return Valves (NRVs). It features gas-specific connections, options for HP flexible hoses or annealed copper tailpipes, and is mounted on a corrosion-resistant AISI 304 stainless steel frame. Hydraulically tested to 350 bar, this manifold is ideal for all medical gas variants.

Application:

The manifold complete set is essential for medical gas pipeline systems, ensuring a reliable and safe supply of gasses like oxygen, nitrous oxide, and medical air. It allows for efficient gas distribution and easy scalability within healthcare facilities, supporting critical patient care and surgical environments.
