AIR FILTER

What is the purpose of an Air Filters & vaccum Air Filters in a Medical Gas Pipeline System (MGPS) connection?

Air filters in an MGPS remove contaminants from compressed air, while vacuum air filters protect the vacuum system by trapping particles and moisture, ensuring clean and efficient operation.

How do Air Filters & vaccum Air Filters in Medical Gas Pipeline System (MGPS) help eliminate risks?

Air filters and vacuum air filters in an MGPS eliminate risks by preventing contaminants from entering the airflow or vacuum system, ensuring clean air, protecting equipment, and maintaining patient safety.

Our Products

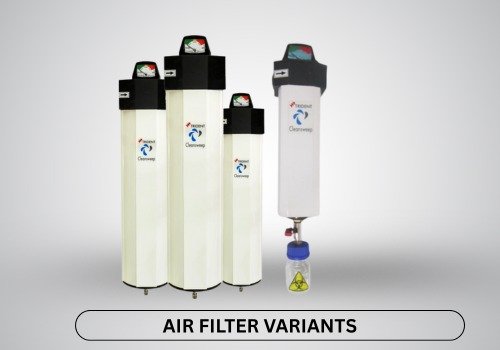

AIR FILTER

The Air Filter by Trident ensures optimal pneumatic tool performance by removing contaminants from compressed air. Its 3-stage system combines coalescing filters for liquid oil and water, a microfilter with borosilicate fibers for fine particles, and activated carbon filters for oil vapor, providing clean and dry air to protect your equipment.

Specifications:

The Air Filter features a 3-stage filtration system with borosilicate elements for particles as fine as 0.01 µm and activated carbon for odor removal. Constructed from extruded aluminum alloy with epoxy powder coating, it operates at a maximum temperature of 80°C. The filter ensures minimal oil carryover—down to 0.01 mg/m³—and maintains an initial pressure loss of 0.15 kg/cm², with a pressure drop of 0.4 kg/cm² for element changes.

Application:

The Air Filter Micro 3-Stage Filter is ideal for applications requiring high-quality compressed air, such as manufacturing, pharmaceuticals, and food processing. It effectively removes particulate contaminants, liquid oil, and water, and eliminates oil vapor and odors, ensuring clean and reliable air for critical processes and equipment protection.

BACTERIA VACCUM FILTER

The Bacteria Vacuum Filter is designed for high efficiency, featuring a borosilicate filter element with 99.995% efficiency and a lightweight, corrosion-resistant aluminum body. Compliant with the Health Technical Memorandum 2022, it includes a differential pressure gauge for easy filter replacement and a sterilizable drain flask for capturing biological fluids, making it ideal for critical medical applications.

Specifications:

The Bacteria Vacuum Filter boasts a particle removal efficiency of 99.995% for particles as small as 0.3 micron and a penetration rate to BS 3928 of <0.005%. It operates at a maximum temperature of 80°C (176°F) with a pressure loss of 30 mbar for clean elements and 100 mbar when changed. Constructed from extruded aluminum alloy with external epoxy powder coating and internal anodizing, it includes a hand shut-off valve and a sterilizable 100 ml drain flask, supporting full vacuum operation.

Application:

The Bacteria Vacuum Filter is essential in healthcare settings for maintaining sterile environments and ensuring the safe removal of contaminants. It is used in applications such as surgical procedures, laboratory operations, and dental practices, where precise filtration and reliable vacuum performance are critical for preventing infection and maintaining equipment integrity.
